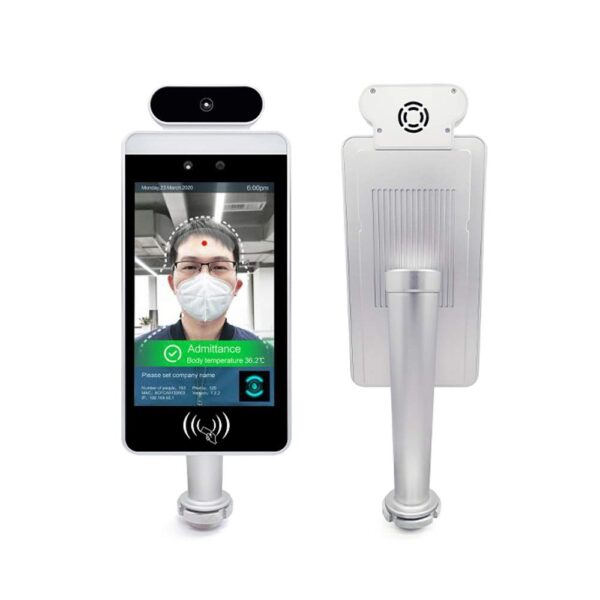

8 Inch Face Recognition Temperature Measurement Kiosk Support Face Comparison Library/Attendance Machine/Visitor Management System (Bracket)

$1,500.00

Camera

  • Resolution: 2million pixels
  • Type: Binocular wide dynamic camera
  • Aperture: F2.4
  • Focusing distance: 50 – 150cm
  • White balance: auto
  • Photo flood light: LED and IP dual photo flood light
  • Resolution: 800×1280

Processor

  • CPU: RK3288 qua-core(optional RK3399 six-core, MSM8953 eight-core)
  • Storage: EMMC 8G

Interface Network

  • Module: Ethernet and wireless(WIFI)
  • Audio: 1.5W/4R speakers
  • USB: 1USB OTG, 1USB HOST standard A port
  • Serial communication: 1RS232 serial port
  • Relay output: 1 dooropen signal output
  • Wiegand: One wiegand26/34 input
  • Upgrade button: Support Uboot upgrade button
  • Wired network: 1RJ45 Ethernet socket

Function

  • 1:N face recognition: Support
  • 1:1 face comparion: Support
  • Stranger detection: Support
  • UI interface configuration: Support
  • Upgrade remotely: Support
  • Interface: Interfaces including device management, personnel/ photo management, record query, etc.
  • Deployment method: Support public cloud depoyment, privatized deployment, LAN use, stand-alone use.

Infrared thermal imaging module

  • Temperature detection : Support
  • Temperature detection distance: 1meter(optimal distance 0.5 meter)
  • Temperature measurement distance: ≤ ±0.5℃
  • Temperature measurement range: 10℃ ~ 42℃
  • Visitor’s temperature is normal and released directly: Support
  • Abnormal temperature alarm: Support

General Parmeters

  • Power: DC12V (±10%)
  • Operating temperature: 0℃ ~ 40℃
  • Storage temperature: -20℃~60℃

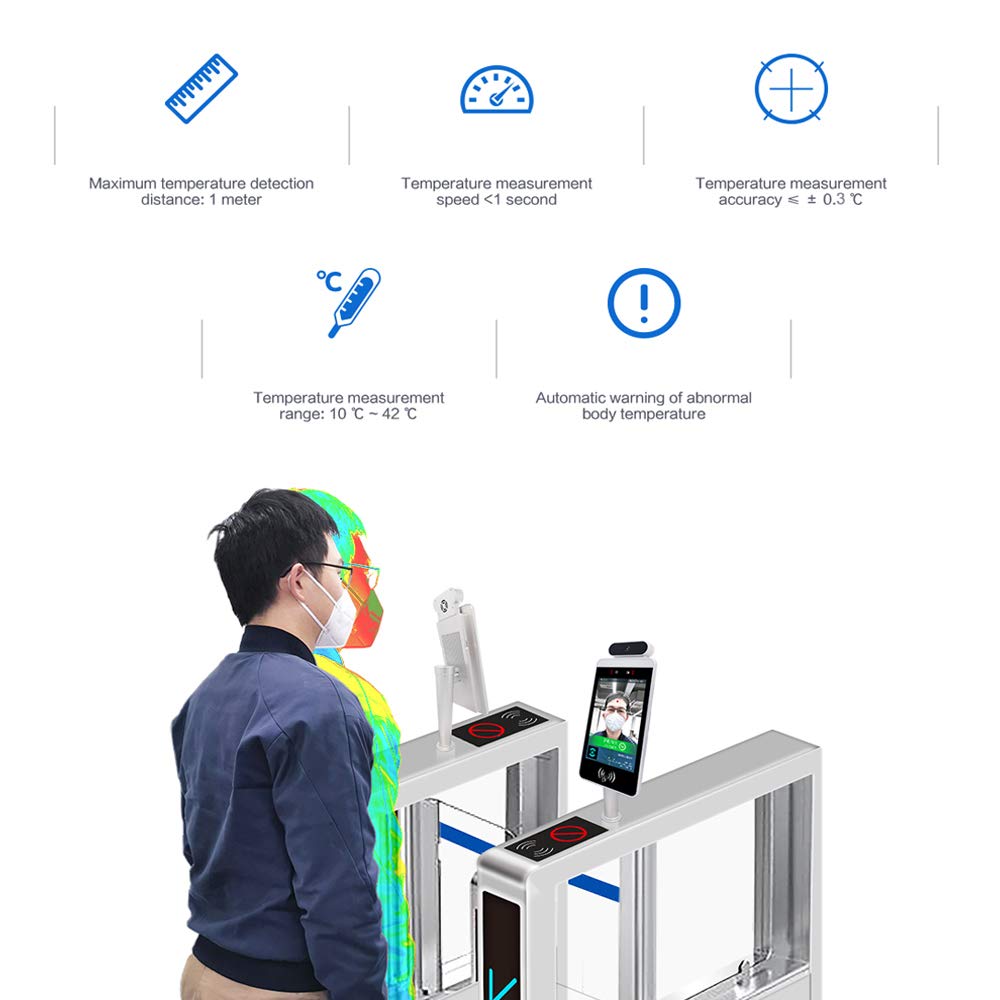

  • ✔ INFRARED THERMAL IMAGING TEMPERATURE MEASUREMENT: the longest temperature measurement distance is 1 meter, the temperature measurement speed is 200 milliseconds, and the temperature measurement deviation is ± 0.2℃. Abnormal body temperature, automatic alarm
  • ✔ NON-CONTACT: The terminal will issue an abnormal warning and display its temperature in a non-contact, accurate, reliable, efficient and imperceptible way to persons whose body temperature exceeds the normal value
  • ✔30,000 FACE ID MEMORY: AI thermal imaging facial temperature detection smart terminal is integrated with facial contrast recognition (above 99.7%), supporting 30,000 face databases
  • ✔INTELLIGENT ATTENDANCE MANAGEMENT PLATFORM: Centralized management of pass records, personnel management, intelligent attendance sign-in, body temperature detection, one-click generation of attendance reports, cloud management and control updates
  • ✔ MORE DETAILS: Built-in multi-language, can switch at will. Support (fingerprint device, IC card reader, QR code reader, etc.) multiple peripheral extensions, and support multiple API docking

Product Specifications
Color Bracket
Ean 0791535949178
Model Number jk-5015
Part Number jk-30029
UNSPSC Code 41112224
UPC 791535949178

Specification for this product family
Brand Name Greenure
UNSPSC Code 41110000
